rám

Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

vidlice

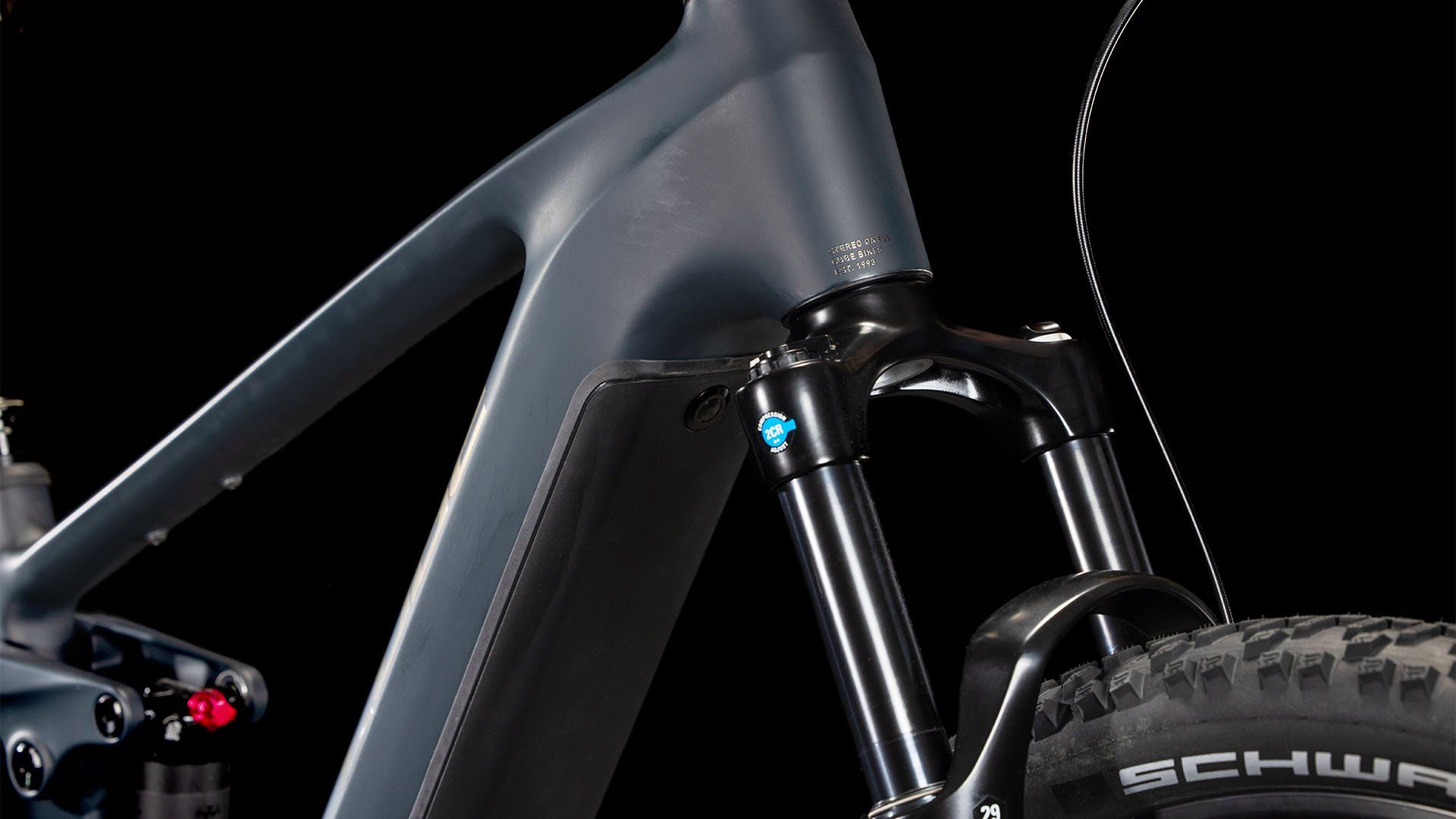

SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm

tlumič

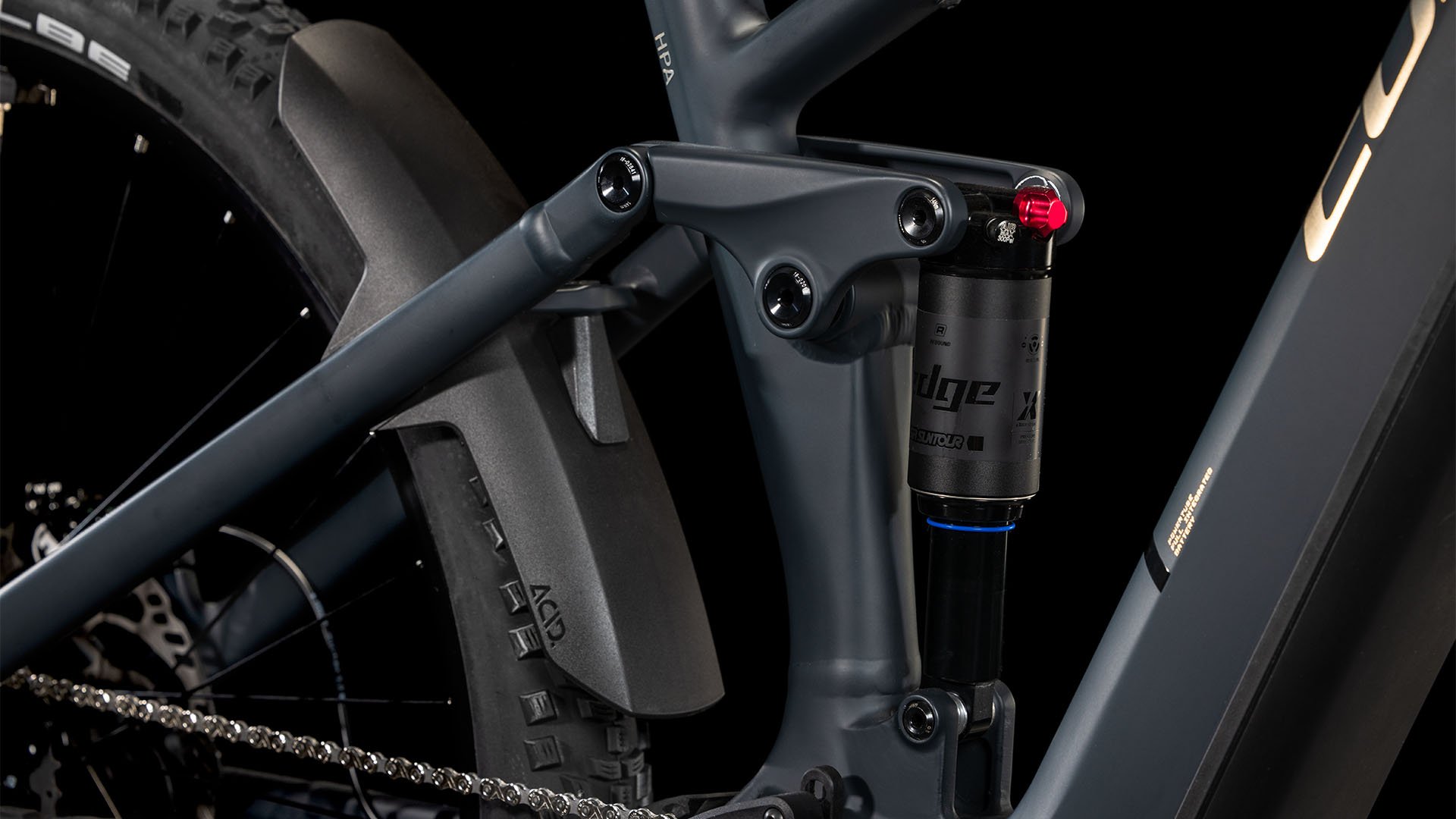

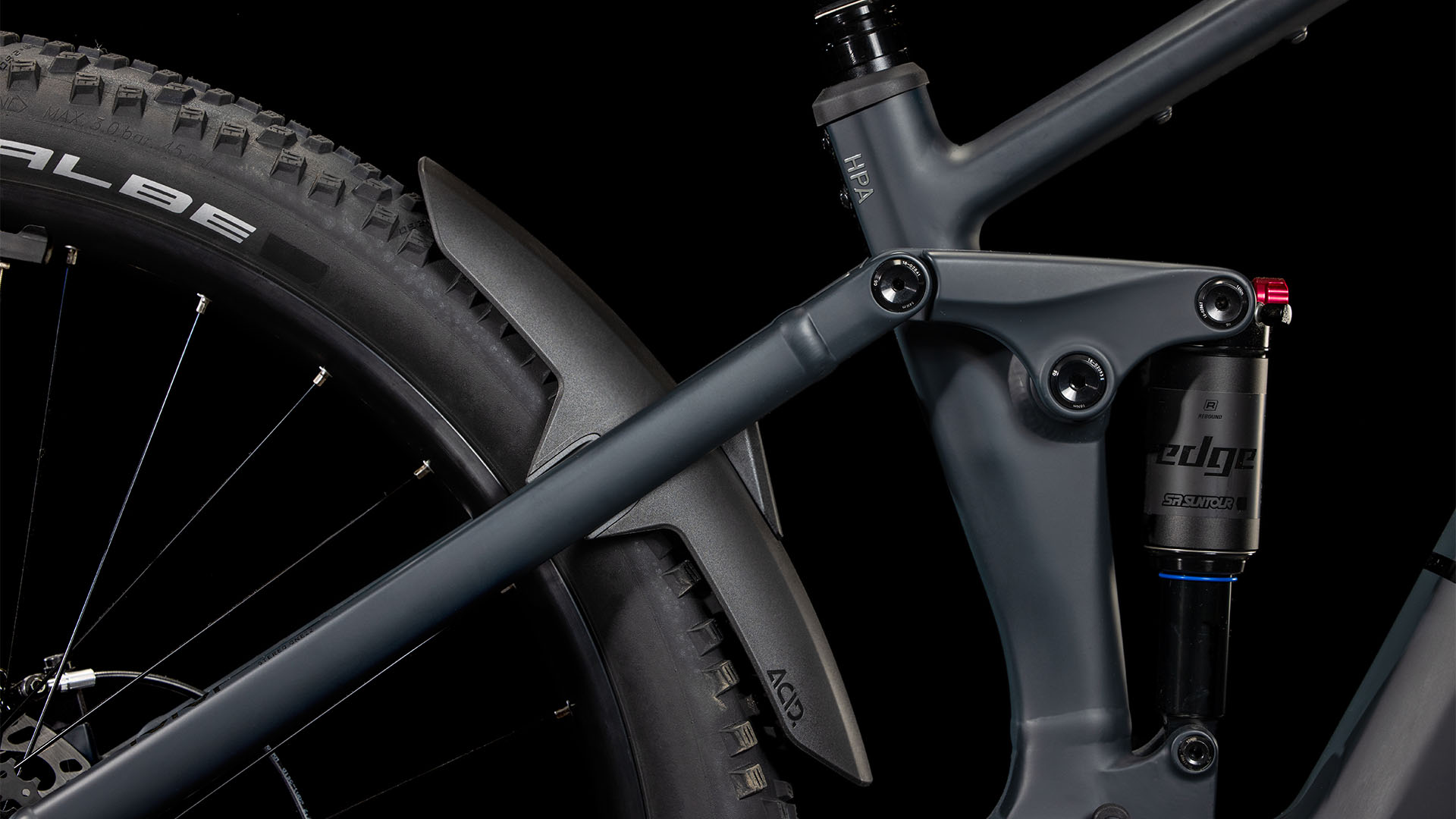

SR Suntour EdgeX R 185x52,5mm, Rebound Adjust, Trunnion Mount

výbava tlumiče

Top: 54mm Trunnion Mount, Bottom: 22.2x8mm

hlavové složení

ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

představec

CUBE Performance Stem E-MTB 35, FPI-Link

řídítka

CUBE Rise Trail Bar 35

gripy

ACID Hybrid Perform

přehazovačka

Shimano Cues RD-U6000-GS, 10-Speed

vodítko řetězu

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

řazení

Shimano Cues SL-U6000, Rapidfire-Plus

brzdy

Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)

kliky

ACID MTB Hybrid Pro, 38T

kazeta

Shimano Cues CS-LG300, 11-48T

řetěz

KMC eGlide

ráfky

CUBE EX30, 32H, Disc, Tubeless Ready

přední náboj

CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt

zadní náboj

CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt

pláště

Schwalbe Smart Sam, Active, 2.6

pedály

ACID PP MTB

sedlo

ACID Sequence Pro 160

sedlovka

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

motor

Bosch Drive Unit Performance Line CX, Smart System

baterie

Bosch PowerTube (800Ah)

nabíječka

Bosch  2A

ovladač

Bosch Purion 200 with Integrated Display
